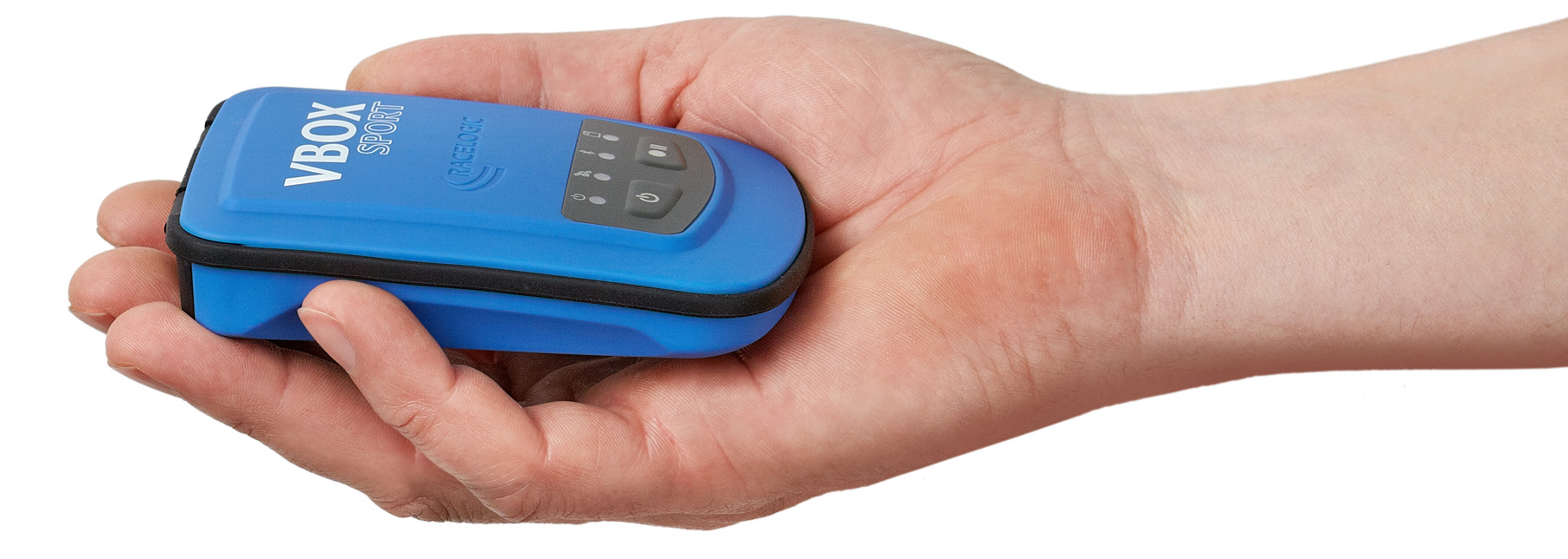

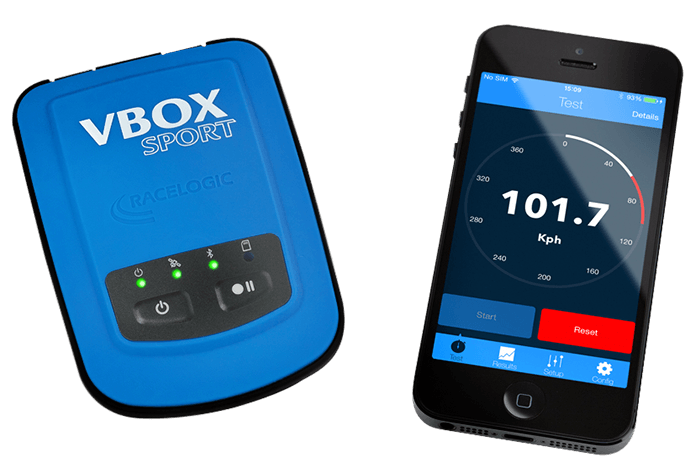

VBOX Sport
A lightweight, portable data logger that can be used in any vehicle and environment to measure performance or lap times.
Bluetooth interface to iPhone™ or iPad™- Internal rechargeable battery
- Inbuilt GPS antenna
- Waterproof (IP65 with connector bungs)
- Free iPhone™ apps for performance testing and lap timing
Features
Bluetooth
Battery Powered
Waterproof
Inbuilt Antenna
Internal or external GPS antenna logs data at a rate of 25 times per second (25 Hz)

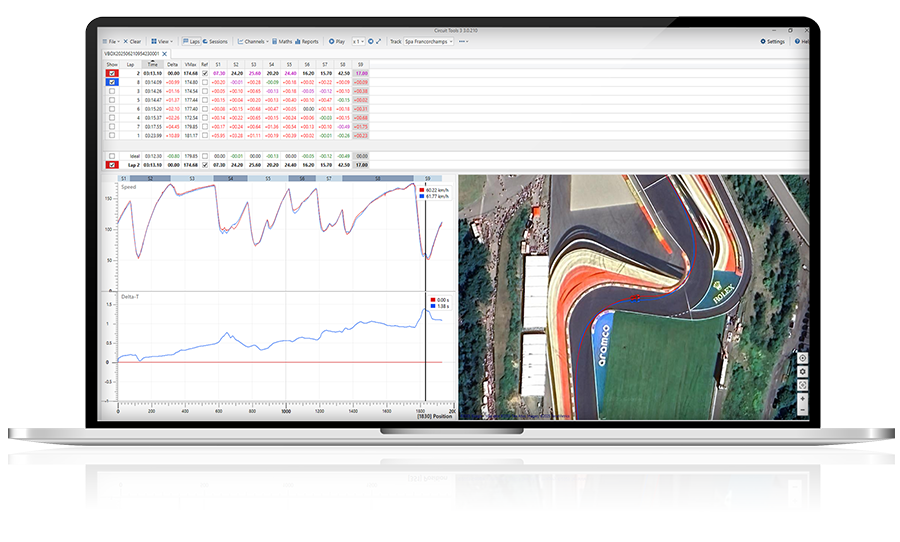

Powerful Analysis Software
Circuit Tools is designed by racing drivers for racing drivers, with none of the complexity normally associated with data analysis software.
The software will automate many tasks and give you all the information required to improve lap times.
Watch this video and download the accompanying video and data files for replay in Circuit Tools.

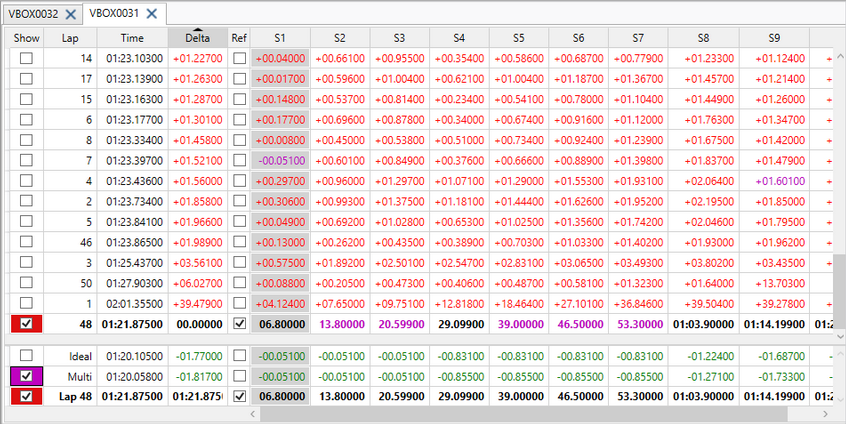

Fastest Lap First
The fastest lap from your latest session is automatically chosen and displayed on the graph window.
You can compare runs from your latest session, or from different days, drivers or sessions simply by importing them and clicking on the relevant lap time shown in the session window.
Data
Track Map Position
Delta-Time Trace
Chart Area
The chart area gives a graphical representation of the data contained within your test file, in this case three runs from a 0 to 60 mph.
Any channel (e.g. Speed against Time) can be set as X/Y axis, and multiple channels and files can be overlaid.

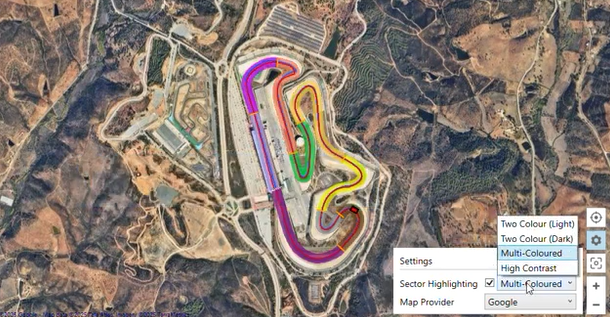

Track Map Position
The map area shows a positional trace from either the saved data contained within a file or real time live data.
Selecting 'Show Aerial Image/Road Map' dropdown menu will overlay either an aerial image or road map from Bing Maps onto the map area.

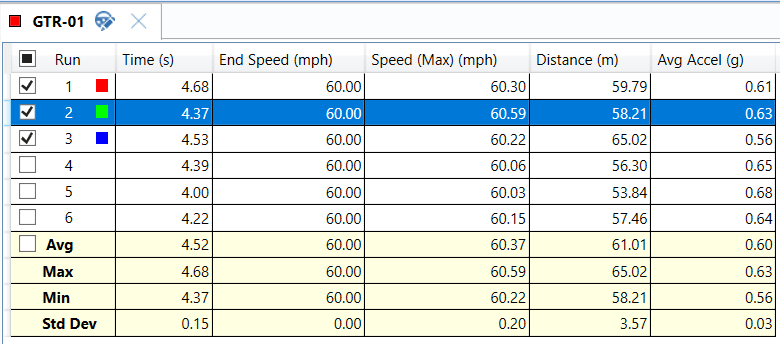

Test Result Table
Our Apps
RACELOGIC have designed three dedicated iPhone™ apps: Performance Test, LapTimer and Diagnostics.
Using the apps with VBOX Sport you can view GPS data that is being logged at 25 times per second and provides a level of accuracy currently unheard of with iPhone and iPad apps.
The Performance Test App
This app provides you with acceleration, deceleration and VMAX information for your vehicle previously only available to professional RACELOGIC VBOX users.
You can quickly and accurately measure your 0-60 acceleration time, turn your test track into a drag strip and measure your 1/4 mile time and trap speed. Different modes allow you to measure your braking performance and zero to zero times.
Key features
- Accel / Decel
- Speed
- VMAX
- 0-60, 0-100
- 1/4 mile time
- Dyno mode
- G-force
- Braking performance
- Zero-speed-zero
- Free of charge
- Auto track selection – based on your current location and using our comprehensive track map database, no need to set the start/finish line
- Predicted lap time – using unique RACELOGIC algorithms to predict your current lap time based on your reference lap with delta-t shown in a red/green bar graph
- Display current speed or maximum speed in mph or km/h
- List of lap times, including sector times where available
- Custom circuit creation – create your own track or circuit and start/finish line if required
- Save your lap data in a RACELOGIC .vbo file for analysis in Circuit Tools software
- Range of configuration options
- Free of charge
Partner Apps
VBOX Sport is compatible with the following 3rd party apps. If you are interested in developing apps that connect to a VBOX Sport, please read our VBOX Sport Development Portal.
Harry's LapTimer
- Grand Prix Edition required
- Fully automated lap timing including predictive lap timing
- Professional sensor support
- Video reference lap comparison
- MultiCam for iOS devices, GoPro HERO and Sony cams
- More than 1100 predefined tracks
Porsche Track Precison
- For all Boxster, Cayman and 911 models, as well as for all GT vehicles with model improvements from CW45/16
- Automatic lap time recording
- Live displays
- Video analysis
- Sharing with other drivers
RaceChrono
- Lap timer for circuit and point-to-point tracks
- Gauge view of live data
- Analysis mode with configurable graphs
- Lap list with optimal lap time calculation
- Exporting to CSV and NMEA

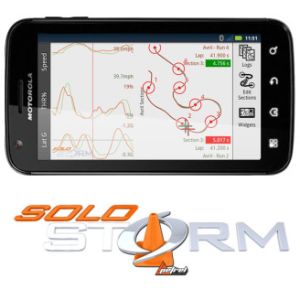

SoloStorm
- Optimised for Autocross, Hill Climb, ProSolo and Time Attack
- Log maps, data and video
- Automated sectional analysis
- Overlay video and data on the device
- Compatible with both phones and tablets
- Open licensing (run on as many devices as you want)
iLapTimer
- GPS Lap timer and race data acquisition software
- Perfect for time trial, track day and competition
- Shows current lap time, best lap time and previous laps automatically after each lap
- Allows the sharing of lap times on Facebook, Twitter, Instagram, WeChat and Weibo
- Built-in tracks
Add-ons and Accessories
Bar Mount
External Patch Antenna
Suction Mount
Cigar Plug USB Adapter
