Take the Guesswork Out of Your Pit Stop
Eliminate penalties with precise timing assistance- Receive prompts when to leave the pit box
- Get warnings before crossing the line too early
Why trust in VBOX Pit Lane Timer?
In endurance racing, every second counts, especially in the pit lane!
VBOX Pit Lane Timer gives instant feedback to help you save time in the pit lane and avoid penalties.
Accurate Data
VBOX Pit Lane Timer logs stint and pit lane times to SD card at up to 25 times per second. The data is calculated at all times, even if you choose not to display it.
Multiple Display Modes
VBOX Pit Lane Timer offers various display modes. Track your race time while driving, see your speed in the pit lane, and get a clear countdown for when to leave the pit box.
Live LED Feedback
6 LEDs provide real-time feedback, monitoring pit entry speed, pit box timing, and delta time to pit exit.
Free Analysis Software
You can analyze your pit stops, as well as set your pit lane entry and exit point, with our intuitive and free Circuit Tools analysis software.
Free Lifetime Support
Benefit from comprehensive support and software updates at no additional cost for the lifetime of your VBOX product.
Made in Britain
VBOX products are designed and manufactured in the UK. We take pride in our commitment to excellence, ensuring top quality in every aspect of our products.
Flexible Installation

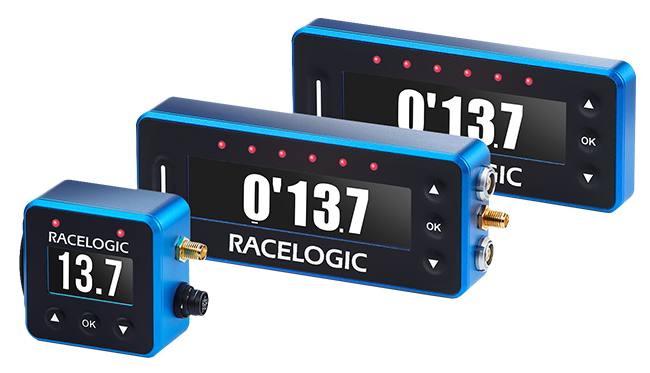

Choose from three Pit Lane Timer models designed to suit your installation needs—rear connector, side connector, or a compact model for tight spaces.
Mini Pit Lane Timer
Update rate: 10 Hz
Velocity accuracy: 0.18 km/h
Position accuracy: 2.5 m (50% CEP)
Operating Temp: -20 to +70 °C
Power: <1.5 W
Input Voltage: 7 – 30 V DC
Dimensions: 50 x 50 x 26.7 mm
Weight: 103 g
Pit Lane Timer (S)
Update rate: 25 Hz
Velocity accuracy: 0.1 km/h
Position accuracy: 2 m (95% CEP)
Operating Temp: 0 to 60 °C
Power: <2 W
Input Voltage: 7 – 30 V DC
Dimensions: 120 x 50 x 22 mm
Weight: 171 g
Pit Lane Timer (R)
Update rate: 25 Hz
Velocity accuracy: 0.1 km/h
Position accuracy: 2 m (95% CEP)
Operating Temp: 0 to 60 °C
Power: <2 W
Input Voltage: 7 – 30 V DC
Dimensions: 120 x 50 x 15 mm
Weight: 156 g
