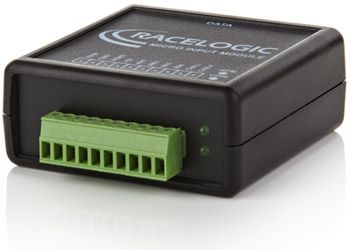

Micro Input Module

The VBOX Micro Input Module (RLVBMICIN01) is a small, highly cost-effective module ideal for use in applications that only require a minimum of additional signals to be recorded, with one RPM (digital) input and four analogue inputs.

A 5 V output is available to power sensors that are not already powered by the vehicle loom, and the analogue sensor range is from 0 V to 14.5 V.

The data output is either in CAN or RS232 format depending on which device it is being used with.

The Micro Input Module is compatible with every Video VBOX and RACELOGIC performance meters and so comes in four different versions, each with a cable suitable for use with specific products.


4 Analogue inputs

RS232 or CAN Bus output

Highly cost-effective

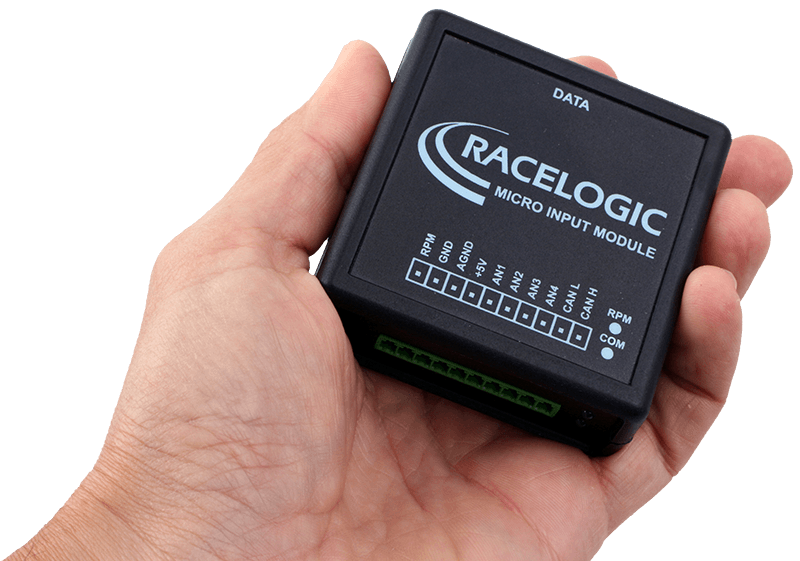

Small & rugged

Inputs / Outputs

4x Analogue Inputs

4 analogue inputs are included, which are capable of measuring
0 – 14.5 V DC.

Digital Input (RPM)

The RPM input connects to the low-tension side of an ignition coil, enabling users to detect the RPM frequency. The input can process voltage spikes in excess of +/- 200 V, and a max. of 666 Hz i/p frequency. The RPM input is a digital frequency input and is also capable of measuring digital signals such as 5 V TTL and 0 - 12 V digital pulse signals.

CAN Output
(VBOX / Video VBOX)

The analogue and digital signals are outputted via CAN when the Micro Input Module is connected to a VBOX. Note that CAN is output only – cannot take an input from Vehicle CAN.

RS232 Output
(Performance Meters)

VBOX Mini, DriftBox, and Performance Box utilise the RS232 output.
