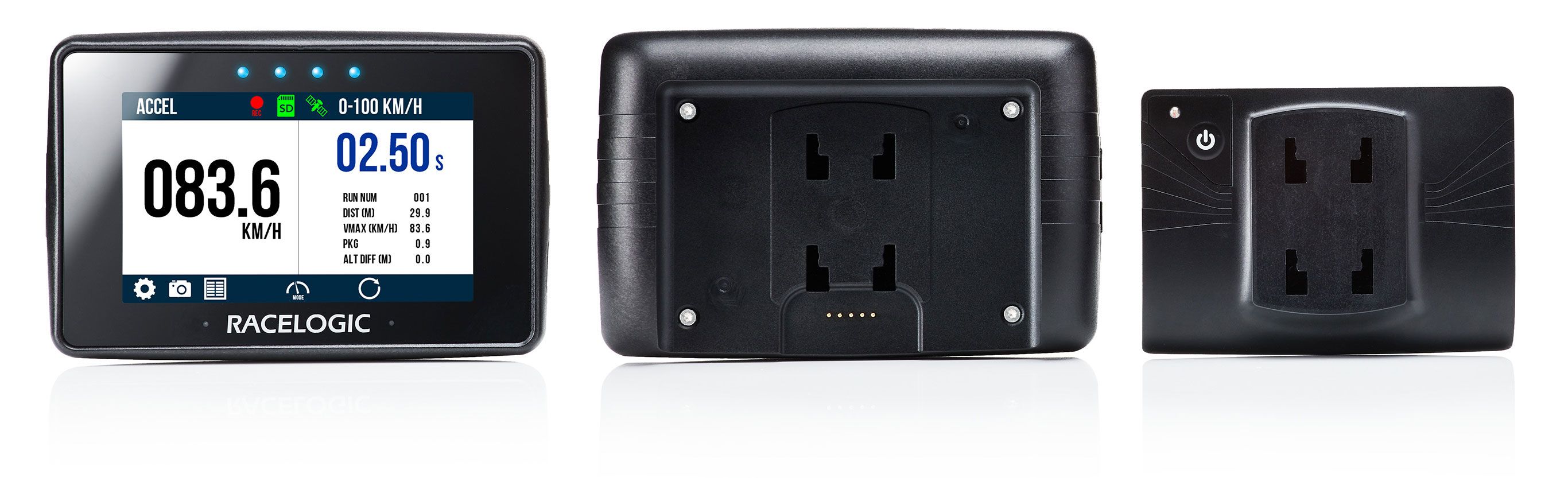

Performance Box Touch

Precision Performance Meter & Lap Timer with Easy to Use Color Touchscreen

Performance Box Touch doesn't just report a number, it gives you real-world data to analyze with our free software. Use this to see what differences changes to your car or driving make, so you can go faster!

  • 4.3” color touchscreen
  • Multiple operating modes
  • Powerful data analysis software
  • Flexible antenna options
Buy it now

Features

Two Camera Inputs

Large Touch Screen

4.3" TFT daylight readable capacitive touch screen, 480*800 pixels
HD Video

Multiple Operation Modes

4 modes available which allow you to conduct a range of performance tests and functions: Acceleration, Deceleration, Lap Time and Speed.

Read more
CAN Bus Input

6hr Battery Life Time

An optional clip-on battery allows you to record for up to 6 hours without plugging in the power lead.

Bluetooth

Flexible Antenna Options

Performance Box Touch comes with an internal patch antenna and has the option to connect an external GPS antenna for even better accuracy.

SD Card Logging

All these parameters are logged to an SD card ten times per second and can be viewed and analyzed in detail using the supplied software.

Looking to improve your lap times?

Performance Box Touch can help you make rapid progress.

Bright LEDs clearly indicate how your speed compares with previous laps, helping you to determine gear selection, find braking points, or understand how much speed you can carry into and through a corner. The screen displays your best lap time, your current lap time, and the difference between the two. You also see total session time and number of laps completed, giving you the information you need to make decisions even before you see your pit board.

View Datasheet
Buy it now

Operation Modes

Performance Box Touch has four modes available which allow you to conduct a range of performance tests and functions: Acceleration, Deceleration, Lap Time and Speed. Accel tests also have a slope correction mode that will correct the acceleration time results for the gradient the test was performed on.

Accel/ Decel Modes

ACCEL Primary Screen

DECEL Primary Screen

ACCEL Secondary Screen

ACCEL Best Results

ACCEL Results

DECEL Results

Lap Timing Modes

Delta -T Main

Delta -T Main

Delta -T Main

Creating Reference Lap

Static Lap Time

Lap History

Lap History

Lap History

Speed Modes (VMAX, Avg, Live)

Speed

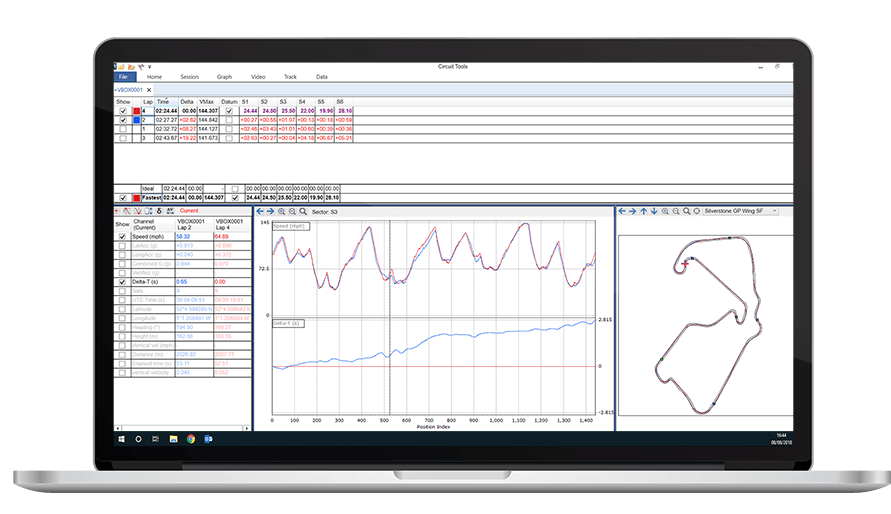

Powerful Circuit Analysis Software

Each Performance Box Touch is supplied with an SD card containing the VBOX Test Suite and Circuit Tools software. Circuit Tools is designed by racing drivers for racing drivers, with none of the complexity normally associated with data analysis software.

The software will automate many tasks and give you all the information required to improve lap times.

Circuit Tools is now compatible with Windows, macOS and iOS devices.
More about Circuit Tools

Fastest Lap First

This feature is unique to Circuit Tools

The fastest lap from your latest session is automatically chosen and displayed on the graph window.

You can compare runs from your latest session, or from different days, drivers or sessions simply by importing them and clicking on the relevant lap time shown in the session window.

Data Window

The data window displays the values of the channels which have been logged at the position of the graph cursor. By default, Speed and Delta-T are displayed.

Track Map Position

A market shows your position on track as you go through the data.

Delta-Time Trace

Time difference or 'Delta-T' is a very useful channel that shows the lap time difference between two different laps, e.g. your last vs. your fastest lap or your best vs. another drivers lap. Use this to pin-point areas for improvement.

Still not convinced?

See what VW Classic Championship racer Dan Rose thinks about the Performance Box Touch on his first trial, or take a look at the independent review from Speed Labs by MotorEnvy.

Buy it now
