VBOX Touch Motorsport

Touch screen performance meter, lap timer and data logger with the ability to run other applications on the same hardware.

  • 4.3” colour touchscreen
  • Performance, lap timing and speed display
  • 25 Hz GPS data logging
  • 2x CAN/Serial interface
  • Digital input for brake testing
  • Inbuilt GPS antenna


Two Camera Inputs

Large Touch Screen

4.3" TFT daylight readable capacitive touch screen, 480*800 pixels
HD Video

4 Operation Modes

Choose between accel, decel, lap timing and speed mode.
CAN Bus Input

Multiple Applications

Ability to run other applications on the same hardware, simply installed via an SD card.

No Data Loss

Remembers your results between power cycles

Inbuilt GPS Antenna

25 Hz GPS receiver with internal patch antenna and SMA connector for external GPS antenna (overrides the internal antenna when connected)

Robust Enclosure

Robust aluminium enclosure with removable rubber cover for added protection

Operation Modes

With its user-friendly interface, the VBOX Touch Motorsport can be used for a range of applications, including performance testing, lap timing or as a speedometer (preloaded in Performance App).

  • Primary Screen

  • Secondary Screen

  • Best Results

  • Results

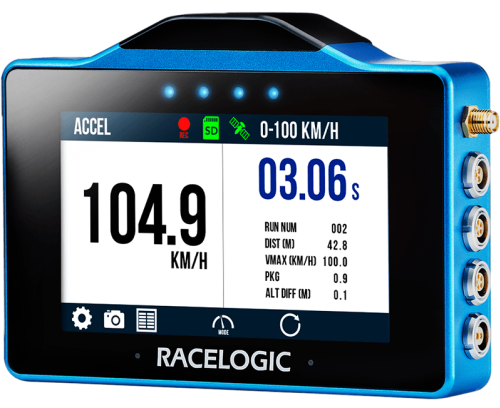

Acceleration Testing

  • Acceleration tests: 0–60, 0–100, 100–200 km/h or mph.
  • Concurrent acceleration tests: Since firmware 1.4, it is possible to conduct four concurrent acceleration tests, visible via two new acceleration screens - Secondary and Best Results.
  • Other predefined tests: 0–100–0, 0–200–0, 0–300-0 and 0–400-0 km/h or mph tests or distance including 0–400 and 0–1000 meters as well as 0–¼ mile and 0–½ mile.
  • Custom tests can be configured, and other options include enabling or disabling alert at end of test, one-foot rollout and slope correction.
  • Screen displays time, run number, distance, VMAX, Peak G and altitude difference.
  • 100-0 KM/H

  • Results

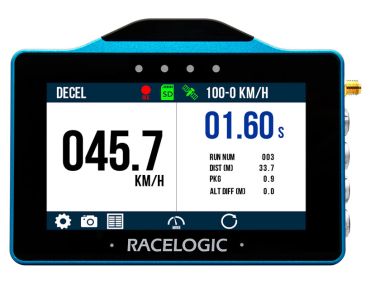

Deceleration Testing

  • Deceleration tests: 60-0, 100-0, 200–0, 300–0 km/h or mph.
  • Custom tests, allowing the user to define their own configurable settings.
  • Screen displays time, run number, distance, Peak G and altitude difference. Units of measurement for speed or distance can be displayed in metric or imperial and easily swapped between.
  • Delta -T Main

  • Delta -T Main

  • Delta -T Main

  • Creating Reference Lap

  • Static Lap Time

  • Lap History

  • Lap History

  • Lap History

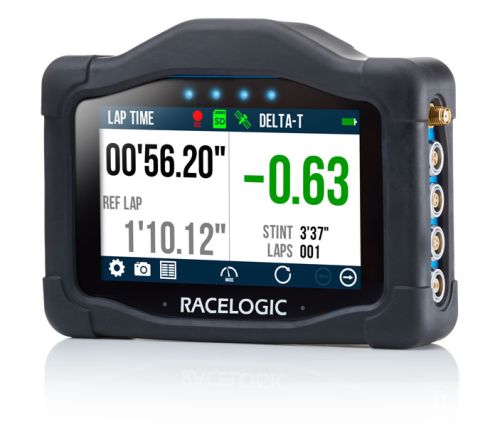

Lap Timing

Sophisticated lap timer with an updatable built-in database of over 800 circuits, real-time Delta-time, Delta-speed (shown via LEDs), Best Lap Time, Current Lap Time, Total Session Time and Lap Count.

Virtual Start/Finish Lines: Using GPS, there is no need for an external beacon or transmitter, as timing will start with vehicle movement. Separate start and finish lines can be set for sprint or hill climbing.

  • Speed

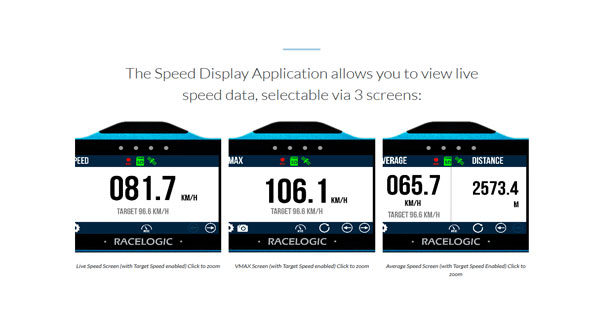

Speed Display

Digital speedometer: VBOX Touch also works as a highly accurate digital speedometer, a handy feature for street driving.

Units can be set in kph or mph and display can show live speed, VMAX, average speed and distance including setting a target speed.

VBOX Touch Applications

VBOX Touch has the ability to run multiple applications on the same hardware. The device comes preloaded with a versatile Performance application, and you can download additional apps, free of charge, from the Apps Store.

Each app provides you with the relevant information needed for that specific test, with results saved directly to the device's SD card. You can also export your test results as a CSV or VBO file for more detailed analysis in Circuit Tools and VBOX Test Suite.

Performance App (Default)

This application ships with VBOX Touch as standard and enables you to perform acceleration and deceleration tests, as well as measure your lap times, live speed, average speed or maximum speed.

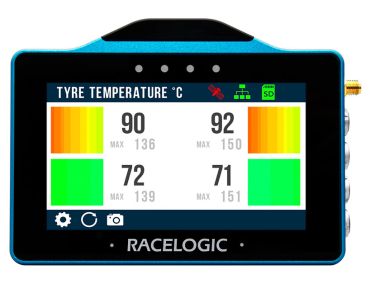

Tyre Temperature App

Measure, log and display the surface temperature of all tyres in real-time via heat maps, live and maximum temperature values. You will also need the RACELOGIC tyre temperature sensor kit (RLACS272).

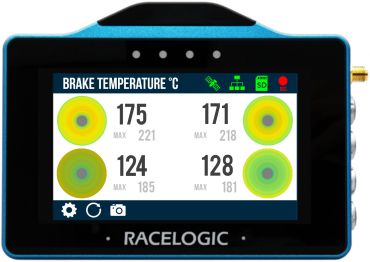

Brake Temperature App

The Brake Temperature Monitoring app gives you a real-time display of the temperature of each brake disc. In order to use this app, you need the Brake Temperature Monitoring Sensor Kit (RLACS314).

Please note that only one app can run on the VBOX Touch at a time. Once you have loaded a new app onto your VBOX Touch, you can easily switch back to the standard functionality of the device by re-installing the Performance app. Similarly, you can switch between other applications, by loading the one that you wish to use onto an SD card, and inserting this into the VBOX Touch.

Write your own apps

A collection of scripts to help get started in writing code for the VBOX Touch can be downloaded below. Each script demonstrates how to utilise one or more features of the product. Please see the Readme.txt for details of each specific app and how to run each script. For further assistance on writing code for the VBOX Touch please contact VBOX support.

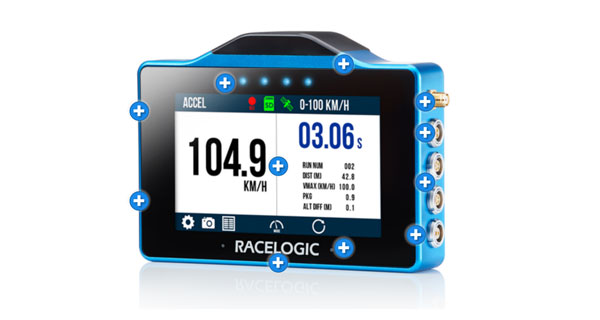

An Introduction

This tutorial takes you through the uses and features of the VBOX Touch.

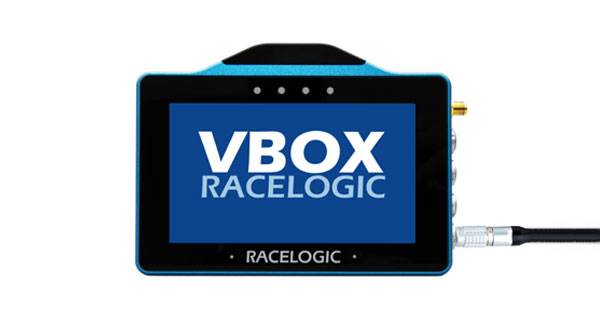

Getting Started

This tutorial takes you through getting started with using the VBOX Touch for the first time and its basic functionality.

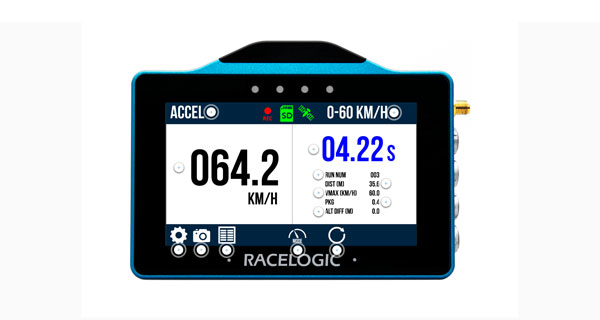

Acceleration Test Application

This tutorial takes you through Acceleration Test Application screens; the information they contain and how they can be used.

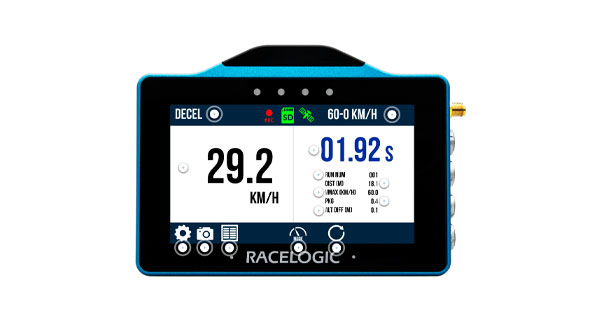

Deceleration Test Application

This tutorial takes you through the Deceleration Test Application screens; the information they contain and how they can be used.

Speed Display Application

This tutorial takes you through the Speed Display Application screens; the information they contain and how they can be used.

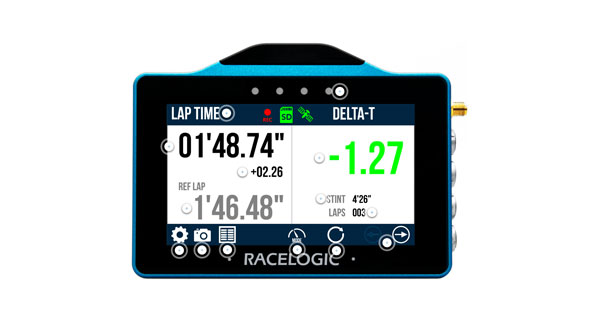

Lap Timing Application

This tutorial takes you through the Lap Timing Application screens; the information they contain and how they can be used.

Powerful Circuit Analysis Software

Circuit Tools is designed by racing drivers for racing drivers, with none of the complexity normally associated with data analysis software.

Circuit Tools is now compatible with Windows, macOS and iOS devices.

Circuit Tools will automate many tasks, e.g. finding your fastest lap, and give you all the information required to improve lap times.

Fastest Lap First

This feature is unique to Circuit Tools

The fastest lap from your latest session is automatically chosen and displayed on the graph window.

You can compare runs from your latest session, or from different days, drivers or sessions simply by importing them and clicking on the relevant lap time shown in the session window.

Data Window

The data window displays the values of the channels which have been logged at the position of the graph cursor. By default, Speed and Delta-T are displayed.

Track Map Position

A market shows your position on track as you go through the data.

Delta-Time Trace

Time difference or 'Delta-T' is a very useful channel that shows the lap time difference between two different laps, e.g. your last vs. your fastest lap or your best vs. another drivers lap. Use this to pin-point areas for improvement.

VBOX Test Suite Software

VBOX Test Suite, our user-friendly, intuitive data analysis software makes the analysis of vehicle acceleration and brake test data quick and clear.

Dedicated plugins and visual aids such as charts, graphs and tables allow you to analyse your data in more detail.

Chart Area

Acceleration Test

The chart area gives a graphical representation of the data contained within your test file, in this case three runs from a 0 to 60 mph.

Any channel (e.g. Speed against Time) can be set as X/Y axis, and multiple channels and files can be overlaid.

Track Map Position

Accel Test

The map area shows a positional trace from either the saved data contained within a file or real time live data.

Selecting 'Show Aerial Image/Road Map' dropdown menu will overlay either an aerial image or road map from Bing Maps onto the map area.

Test Result Table

Accel Test
The test results area displays all of the results from the current test. Within this area it is possible to include/exclude results from the chart area, display the average/max/min values and also easily identify any runs which have not met the pass criteria.

Add-ons and Accessories

Windscreen Suction Mount


The suction mount adheres to any slick flat surface, especially glass.

External Patch Antenna

Optional GPS/GLONASS/Galileo low profile antenna with RG-174 and SMA connector (3 m cable).

Unterminated Power Supply

Unterminated power supply cable for direct connection to a 12 V and GND in the absence of a standard 12 V auxiliary or cigar lighter socket.

Plastic Carry Case

A convenient way to store and transport your performance meter whilst keeping it protected.
